Landoll Trailers
318 Traveling Axle Trailer
Features
- Capacity
- 50 ton
- Axles
- 2
- Deck height
- 38 in
Overview
From Landoll Trailers
The 318 50-ton capacity trailer features a one-piece, 4-beam frame designed with a low-load angle to haul tough loads. Landoll’s full-tilt trailer gives the operator total control of the trailer and heavy loads. The 318 features a dependable rigid frame that lifts up from the fifth wheel and three axles to provide the additional group rating needed. In-house designed and fabricated steel beams, similar to the 317, incorporated with high tensile strength Jr. I-Beam cross members provide additional strength. The undercarriage roller bearings lower the deck into patented reinforced pockets, lowering the deck height and preventing frame twist. The 318 is a highly durable solution when heavy loads are needing moved. The 318 comes equipped with standard centralized grease, Grote annealed marker lights, Grote “Xtreme” wire harnesses and durable powder coat paint. Popular options include Container Chain Drive for heavy containers, multiple Winch combinations and Dock Level Hydraulics to level the trailer to dock height. Photos may show optional features. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Toter Hitch (Flipbook) 1/8″ Steel Tread Plate Over Wood Deck Straps Beside Outer Beam (1-1/4″ x 9″) 255/70R 22.5 Double Coin 255/70R 22.5 Continental 255/70R 22.5 Michelin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. 800-428-5655 moc.llodnal@selasreliart
Specifications
Capacity
- Capacity*
- 100,000 lbs.
Dimensions
- Deck Rating
- 70,000 lbs. in 10′
- Width
- 102″
- Loaded Deck Height
- 38″
- Loaded Ground Clearance
- 20″
- Decking
- 1-3/8″ Apitong Hardwood
- Swing Clearance
- 74-1/2″
- Deck Type
- 1/8″ Steel Tread Plate 1/8″ Steel Tread Plate Over Wood
- Deck Straps
- Deck Straps Beside Main Beam (1-1/4″ x 9″) Deck Straps Beside Outer Beam (1-1/4″ x 9″)
- Upper Deck Slope Wear Protection
- Slope Roller
Frame
- Main Frame
- Fabricated 100,000 PSI Yield Four-Beam Design
General
- Slope Drop
- 45°
- Crossmembers
- 4″ Junior I-Beam on 8″ Centers
- Pin Setting
- 26″
- Tool Box
- Twin Side Mounted in Upper Deck with Lockable Doors (7”H x 34”W x 29” D)
- Tie Downs
- Double Keyhole Chain Slots and Stake Pockets
- Parking Stands
- Two Speed Landing Gear
- Approach Plate
- Flat Approach with (6) Keyhole Tie Downs
- Undercarriage
- (1) 4″ x 126″ and (2) 4″ x 42″ Cylinders; Powder Coated Black
- Grease
- Centralized Grease System
- Rims
- 17.5×6.75 Tubeless Rims
- Powder Coat Color
- TGIC Polyester Powder Coat, White / Black / Yellow / Balboa Blue / Red / Viper Red / Green / Sapphire Blue / Metallic Gray
- Decals
- Hi-Visibility Reflective Package
- Toe Board
- 3/8″ x 2-1/2″ on Lower Deck
- Bulkhead
- 16″ / 24″ 2 Position 48″ x 102″ Mesh
- D-Rings
- Flush Mounted Recessed Mounted Bolt-On at Winch
- Model
- Capacity*
- 318E-48
- 50 Ton
- 318E-50
- 50 Ton
- 318E-50CA
- 50 Ton
- 317E-53
- 50 Ton
- Note
- All Bulkhead options require the 48″ X 102″ Bulkhead Binder Storage Rack Aluminum Light Bar with Dual LED Work Lights, S/T/T Lights, Aluminum Chain / Binder Rack LED Work Lights Dual LED Strobe Beacons Spare Tire Carrier Suspension and Undercarriage Hydraulic Dock Leveler – 62,000 lb. Bluetooth Digital Scale System Air Dump Valve Parking Stands Pin Drop Hydraulic Ramps 5′ Aluminum Ramps-Portable (8,000 lb. Capacity) Tie Down D-Rings Flush Mounted Recessed Mounted Bolt-On at Winch Single Slot Ratchet Winch for 4″ Nylon Strap Winch and Accessories Winch 20K Winch – Slope Mounted (Braden) 12K, 20K, 30K Winch – Upper Deck Mounted (Braden, Warn, Ramsey Versions Available) Dual 20k or 30K Winch – Upper Deck Mounted (Warn) Winch Guard Work lights Cable Roller Guide (4-Way Rollers) Upper Deck Slope Wear Protection Slope Roller Wireless Remote Control Six Function Hydraulic Power Source Spare Hydraulic Quick Couplers (1 Male / 1 Female) Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with Cover Upper Deck Mounted Tires and Rims 17.5 Machined Aluminum Rim (Priced per Wheel) 17.5 Polished Aluminum Rim (Priced per Wheel) 17.5 Dura-Bright Aluminum Rim (Priced per Wheel) 22.5 Machined Aluminum Rim (Priced per Wheel) 22.5 Polished Aluminum Rim (Priced per Wheel) Black Steel and Aluminum Upon Request Tires 235/75R 17.5 Double Coin 255/70R 22.5 Double Coin 255/70R 22.5 Continental 255/70R 22.5 Michelin Spare Tires Available with Rim of Choice Hubodometer PSI Tire Inflation System Paint and Special Options Hot Dip Galvanizing Paint Over Galvanizing – Top Surface Only with Standard Colors Only Paint Over Galvanizing – Sides Only with Standard Colors Only Wet Paint Colors Black (Standard), Metallic Gray, White, Red, Viper Red, Green, Balboa Blue, Sapphire Blue, Yellow Special Paint: Contact Factory Galvanized Bumper Specifications Model Capacity* Base Weight Length Deck Axles Tires & Ply Rating 318E-48 50 Ton 20,700 lbs (+/- 3%) 37′ 102″ 3 (12) 235/75R 17.5 LRJ Double Coin 318E-50 50 Ton 21,800 lbs. (+/- 3%) 39′ 102″ 3 (12) 235/75R 17.5 LRJ Double Coin 318E-50CA 50 Ton 21,800 lbs. (+/- 3%) 41′ 102″ 3 (12) 235/75R 17.5 LRJ Double Coin 317E-53 50 Ton 22,610 lbs. (+/- 3%) 42′ 102″ 3 (12) 235/75R 17.5 LRJ Double Coin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.Specifications subject to change without notice. Line Drawing (PDF)GalleryLearn MoreView LiteraturePrint LiteratureFind a DealerContact Me800-428-5655 moc.llodnal@selasreliartQuentin2026-07-20T13:38:23-05:00
- Certifications
- Cage Code — 65459; Small Business NAICS Codes — 336211, 336413, 333111, 333924, 336212 Copyright © 2026 Landoll Company, LLC. All Rights Reserved.
Loading
- Load Angle
- 8.5°
Gooseneck
- Hitch
- 2″ Kingpin
Running Gear
- Suspension
- SAF Air Ride RLU228, 22,500 lb. Capacity
- Axles
- (3) 25,000 lb. Axles, Dual Tire, Oil Bath Bearings, Automatic Slack Adjusters
- Brakes
- 12.25×7.5 Full Air / Spring Brakes, ABS 4S2M
- Tires
- 235/75R 17.5 LRJ Continental Tires
- Wheels
- Hub Pilot / Steel with Outboard Brake Drums
Hydraulics
- Hydraulic Hook Up
- Quick Couplers 2,500 PSI – 20 GPM at Controls, 50 GPM Max
- Tilt Cylinders
- (2) 4″ x 42″
- Hydraulic Winch
- 12,000 lb. Worm Gear with Spring Tension and 85′ of 1/2″ Cable
- Hydraulic Valve Body
- Rexroth
- Winch
- 20K Winch – Slope Mounted (Braden) 12K, 20K, 30K Winch – Upper Deck Mounted (Braden, Warn, Ramsey Versions Available) Dual 20k or 30K Winch – Upper Deck Mounted (Warn)
- Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with Cover
- Upper Deck Mounted
Electrical
- Air / Electrical
- 7-Way Receptacle
- Lights
- Industry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty)
- Wiring Harness
- Industry Best Grote Xtreme Harnessing (7-year warranty)
Finish
- Finish
- Steel Grit Shot Blast to Bright Metal
- Wet Paint Colors
- Black (Standard), Metallic Gray, White, Red, Viper Red, Green, Balboa Blue, Sapphire Blue, Yellow
Controls
- Wireless Remote Control
- Six Function
About traveling axle trailers

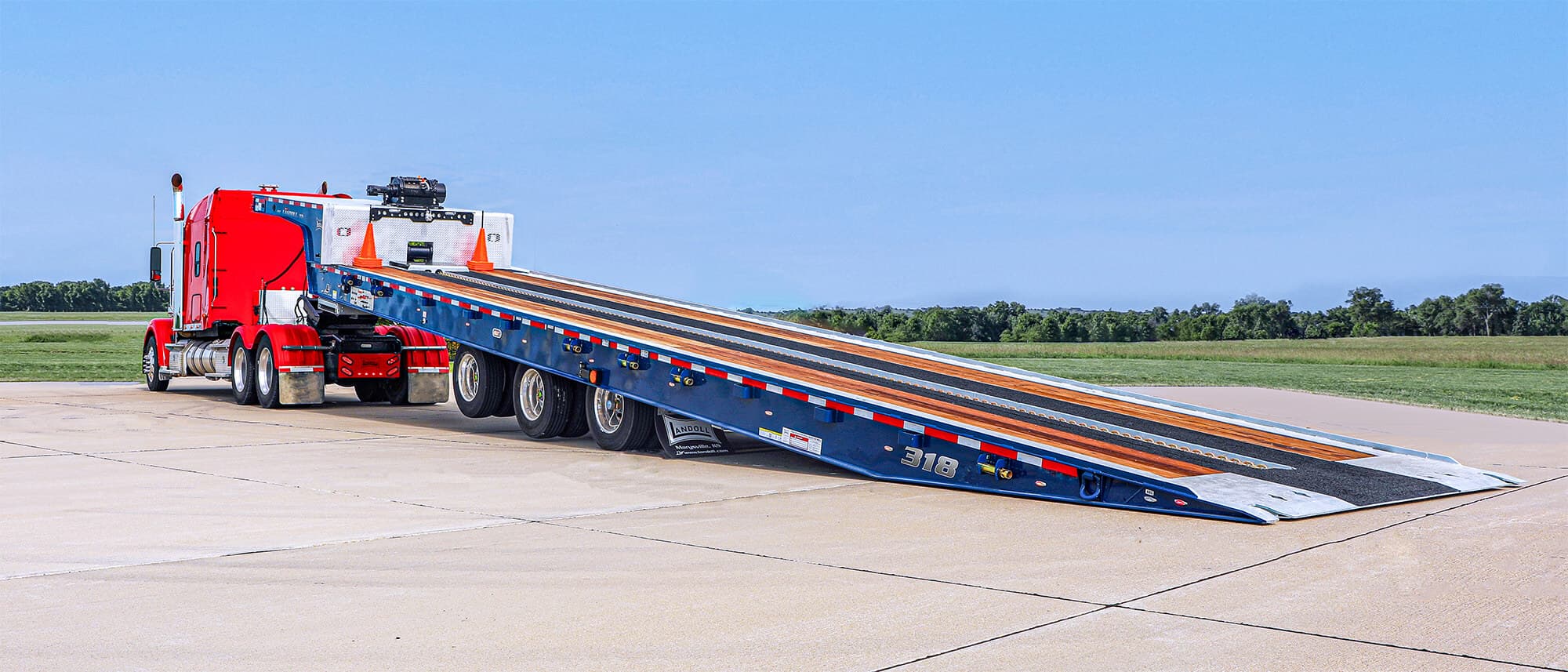

On a traveling axle trailer the axle assembly slides forward hydraulically until the rear of the deck touches the ground, turning the whole deck into a ramp. Equipment loads from the rear without a detachable neck or separate ramps, which makes it fast for one operator. Popular with rental yards and contractors moving mid-size machines and containers, with capacities typically from 25 to 55 tons.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
