Landoll Trailers
330-1 Traveling Axle Trailer
Features
- Capacity
- 8 ton
- Axles
- 2
- Deck height
- 42 in
Overview
From Landoll Trailers
The 330 container trailer is designed with a solid, flat platform made with two main beams, and a rugged outer channel with a 5/16” skid plate and side rail built in. The full-width solid approach plate has four keyhole tie-downs. The 330 is also available with a single drop frame to haul high cube containers. The tilt design provides a 12° load angle that allows container placement with hydraulic control at all times. Place containers right on target – beside buildings, in alleyways, or behind and within retail warehouses. Choose the optional Chain Drive Load System to move multiple boxes on the same load. Other equipment includes full 25,000-lbs. air-brake axles, spring brakes, and 255/70R 22.5 tires. Built with a rugged frame and heavy-duty components, it’s a trailer that will perform for years. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. 255/70R 22.5 Michelin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. Disclaimer: Landoll has a corporate policy of continuous product improvement and development, therefore, specifications are subject to change without any advance notice. Landoll is not responsible for differences between the specifications or illustrations contained on literature, data sheets, website and actual equipment. The information on any form of this website is intended only for the sole use of Landoll. We do not share or sell any of this information to third parties. This drawing and all information therein is property of Landoll and is confidential. It must not be made public or copied. This drawing is loaned subject to return upon demand and shall not be used directly or indirectly in anyway detrimental to our interest. Drawing illustrates standard equipment; optional equipment may change standard measurements. 800-428-5655 moc.llodnal@selasreliart
Specifications
Capacity
- Capacity*
- 8 Ton (16,000 lbs.)
- Estimated Base Weight
- 15,000 lbs. (48′) +/-3%
Dimensions
- Deck Rating
- 10,000 lbs. in 10′
- Swing Clearance
- 72″
- Deck Width
- 102″
- Loaded Deck Height
- 42″
- Decking
- 1/8″ Steel Tread Plate, 5″ Cable Trough – Full Length, Formed Angle Skid Plate / Side 5/16″ x 12″ x 3-1/2″
- Under Deck Toolbox
- 42″W x 28″D x 9″H
Frame
- Main Frame
- Fabricated 80,000 PSI Yield Beams
- Wet Kit for Tractor (Includes 30 Gallon Steel Tank)
- Shipped loose with trailer or factory installed
General
- Crossmembers
- 18″ Centers
- Pin Setting
- 30″ (18″ at 90° Drop)
- Tie Downs
- (4) D-Rings – 2 per side, (4) 4″ Strap Ratchets Curbside with Opposing Hooks Street Side
- Parking Stands

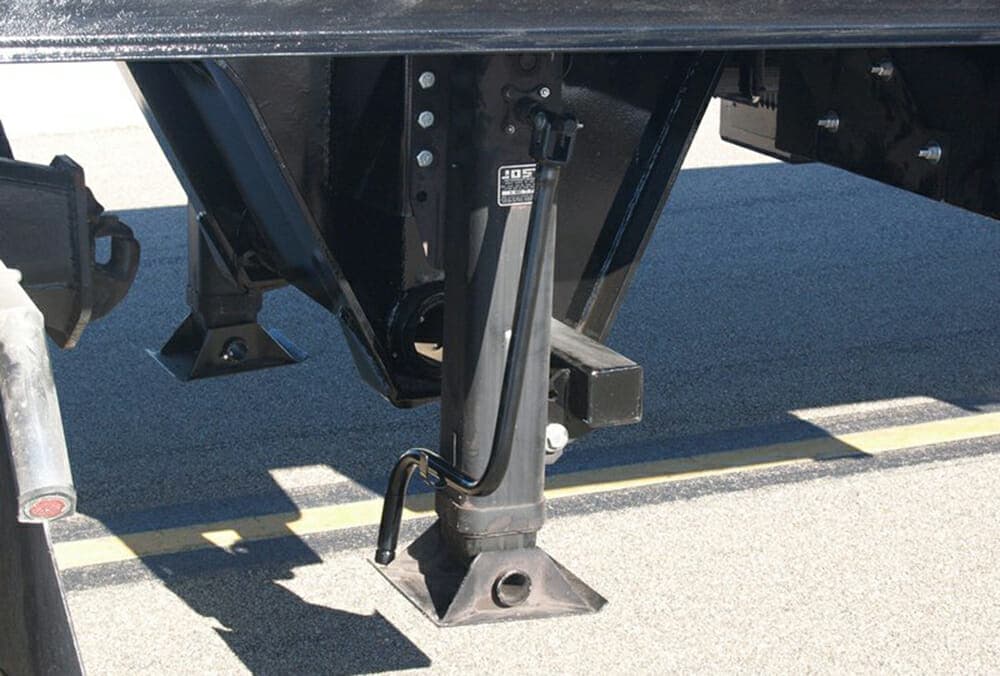

- Jost Two Speed Landing Gear
- Accessories
- 29″ Approach Plate with 4 Keyhole Tie Downs, 1 Pair Adjustable Container Stops (N/A with 90° DD Frame Option), 1 Toolbox, (42″W x 28″ D x 9″H)
- Undercarriage
- Centralized Grease System; Powder Coated Black
- Rims
- 22.5 x 8.25 Tubeless
- Oil Seal Hubs
- Internal Mated Assembly
- Hookup
- 7-Way Receptacle
- Powder Coat Color
- White, Black, Yellow, Blue, Red, Green, Metallic Gray, Sapphire Blue
- Decals
- Hi-Visibility Reflective Package
- Bulkhead
- 16″/24″ 2 Position 48″ x 102″ Mesh
- Centering Boards
- 2 front / 2 rear
- Model
- Capacity*
- 330D-1-42
- 8 Ton
- 330D-1-48
- 8 Ton
- 330D-1-50
- 8 Ton
- Certifications
- Cage Code — 65459; Small Business NAICS Codes — 336211, 336413, 333111, 333924, 336212 Copyright © 2026 Landoll Company, LLC. All Rights Reserved.
Loading
- Load Angle
- 12°
Running Gear
- Suspension
- Transpro Mono Leaf, 25,000 lbs. Capacity
- Axles
- (1) 25,000 lb. Dual Tire, Oil Bath Bearings, Automatic Slack Adjusters Axles Prepped for Air Inflation
- Brakes
- 16.5 x 7 Full Air / Spring Brakes ABS, 2S1M
- Tires
- 255/70R 22.5 LRH Continental
- Wheels
- Steel Hub Pilot
- Spare Tire and Rim
- (235/75R 17.5) or (255/70R 22.5)
Hydraulics
- Hydraulic Hook Up
- 3/4″ 150 Quick Couplers
- Hydraulic Winch
- 12,000 lbs. Worm Gear with Spring Tension and 85′ of 1/2″ Cable
- Hydraulic Valve Body
- Rexroth 2,500 PSI – 20 GPM at Controls, 50 GPM Max
- Polished Aluminum Hydraulic Tank
- (19″W x 24D”)
- Hydraulic Engine Package 25HP Gas
- Upper Deck Mounted Under Deck Mounted
Electrical
- Lights
- Industry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty)
- Wiring Harness
- Industry Best Grote Xtreme Harnessing (7-year warranty)
Finish
- Finish
- Steel Grit Shot Blast to Bright Metal
- Paint Over Galvanizing
- Contact factory
Controls
- Wireless Remote Control
- Six Function
About traveling axle trailers
On a traveling axle trailer the axle assembly slides forward hydraulically until the rear of the deck touches the ground, turning the whole deck into a ramp. Equipment loads from the rear without a detachable neck or separate ramps, which makes it fast for one operator. Popular with rental yards and contractors moving mid-size machines and containers, with capacities typically from 25 to 55 tons.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
