344 Traveling Axle Trailer
Features
- Capacity
- 8 ton
- Axles
- 2
- Deck height
- 48 in
Overview
From Landoll Trailers
Landoll’s all-new 344 Traveling Axle Trailer builds on our experience in the storage container industry. With an increased capacity, this trailer can do more than just empty containers. The 344 is available in 43′, 46′, and 50′ lengths. The 43′ model can handle up to 45′ boxes and the 46′ model can handle up to 48′ boxes. If you have domestic 53′ high cube boxes in your fleet, then choose the 50′ model. Customize the trailer around your needs. A fifth wheel height of 45″ is required when hauling high-cube containers. The 344 includes a Chain Drive Load System, or a Winch System is available. Toe boards can be added with an inside position for guiding 96″ wide boxes or bolt-on outside guides can be optioned for 102″ high cube boxes. Each trailer comes with the Landoll Handling Package standard. Photos may show optional features. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. 800-428-5655 moc.llodnal@selasreliart
Specifications
Capacity
- Capacity*
- 15,000 lbs.
- Estimated Base Weight
- 17,000 lbs. +/- 3% (43′)
Dimensions
- Deck Rating
- 15,000 lbs. in 20′
- Lengths
- 43′, 46′, 50′
- Deck Width
- 102″
- Deck Height (At Axle Location)
- 48″ (45″ Fifth Wheel)
- Decking
- 1/8″ Steel Tread Plate, 11″ Recessed Trough – Full Length, Skid Plate 9.5″ Wide / Side Outer Frame 6-3/4″ Tall
- Swing Clearance
- 78″
Frame
- Main Frame
- Fabricated 80,000 PSI Yield Beams
General
- Crossmembers
- 12″ and 24″ Centers
- Pin Setting
- 18″
- Accessories
- Traction Paint in Traffic Areas, Two-Stage Powder Coat Paint, 29″ Flat Approach Plate with (2) Keyhole Tie Downs, and Wireless Remote Control
- Tie Downs
- Tie Down Package in Skid Plate
- Grease
- Centralized Grease System
- Lockable Storage Box
- (1) 42″ W x 28″ D x 9″ T, Under Deck Mounted

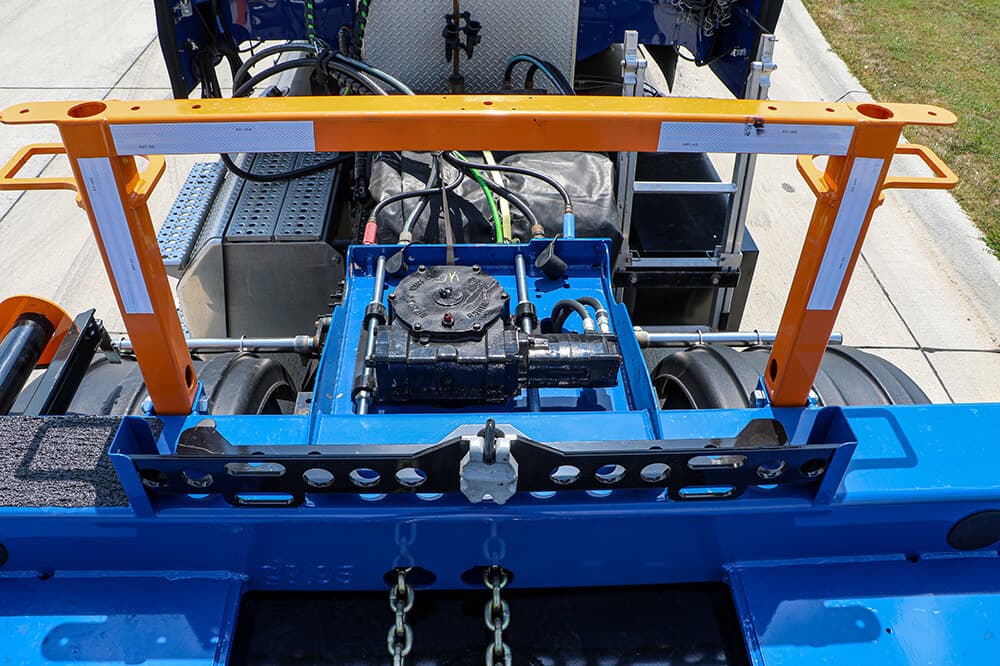

- Gear Box Chain Drive Load System
- Chain Drive Line Pull 12,000 lbs.
- Chain Handling Package
- Front Chain Bridle
- Centering Guides
- Standard
- Parking Stands
- Jost Two Speed
- Loading System
- Hydraulic Gear Box, 12,000 lbs., with Continuous Power Chain Drive Load System 1/2″ Chain
- Powder Coat Color
- White, Black, Yellow, Blue, Red, Green, Sapphire Blue, Dark Gray
- Model
- Capacity*
- 344-43
- 15,000 lbs.
- 344-46
- 15,000 lbs.
- Certifications
- Cage Code — 65459; Small Business NAICS Codes — 336211, 336413, 333111, 333924, 336212 Copyright © 2026 Landoll Company, LLC. All Rights Reserved.
Loading
- Load Angle
- 12°
Running Gear
- Suspension
- Air Ride 22,500 lbs. Capacity
- Axles
- 25,000 lbs. Axles, Dual Tire, Oil Bath Bearings
- Brakes
- 16.5 x 7 Full Air / Spring Brakes, ABS 4S2M
- Tires
- 255/70R 22.5 LRH Continental
- Wheels
- Hub Pilot 22.5 x 8.25
Controls

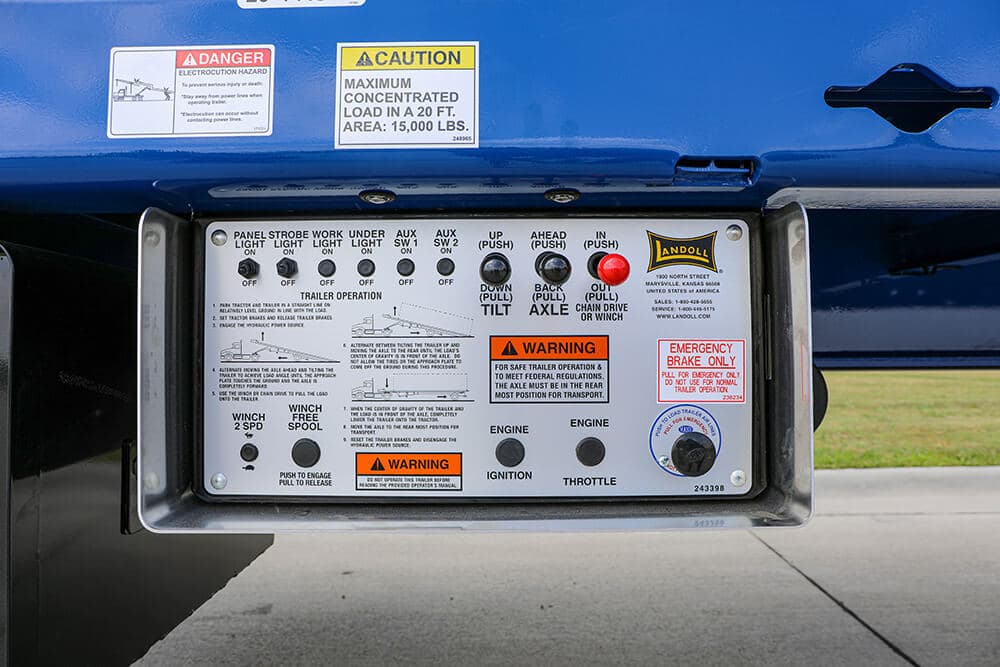

- Wireless Remote-Control
- Standard
Hydraulics
- Hydraulic Hook Up
- 3/4″ Flat-Faced ISO Quick Coupler
- Hydraulic Valve Body
- Rexroth 2,500 PSI – 20 GPM at Controls, 50 GPM Max
- Planetary Winch
- 20,000 lbs.
Electrical
- Air / Electrical
- 7-Way Receptacle
- Lights
- Industry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty)
- Wiring Harness
- Industry Best Grote Xtreme Harnessing (7-year warranty)
Finish
- Finish
- TGIC Polyester Powder Coat
About traveling axle trailers

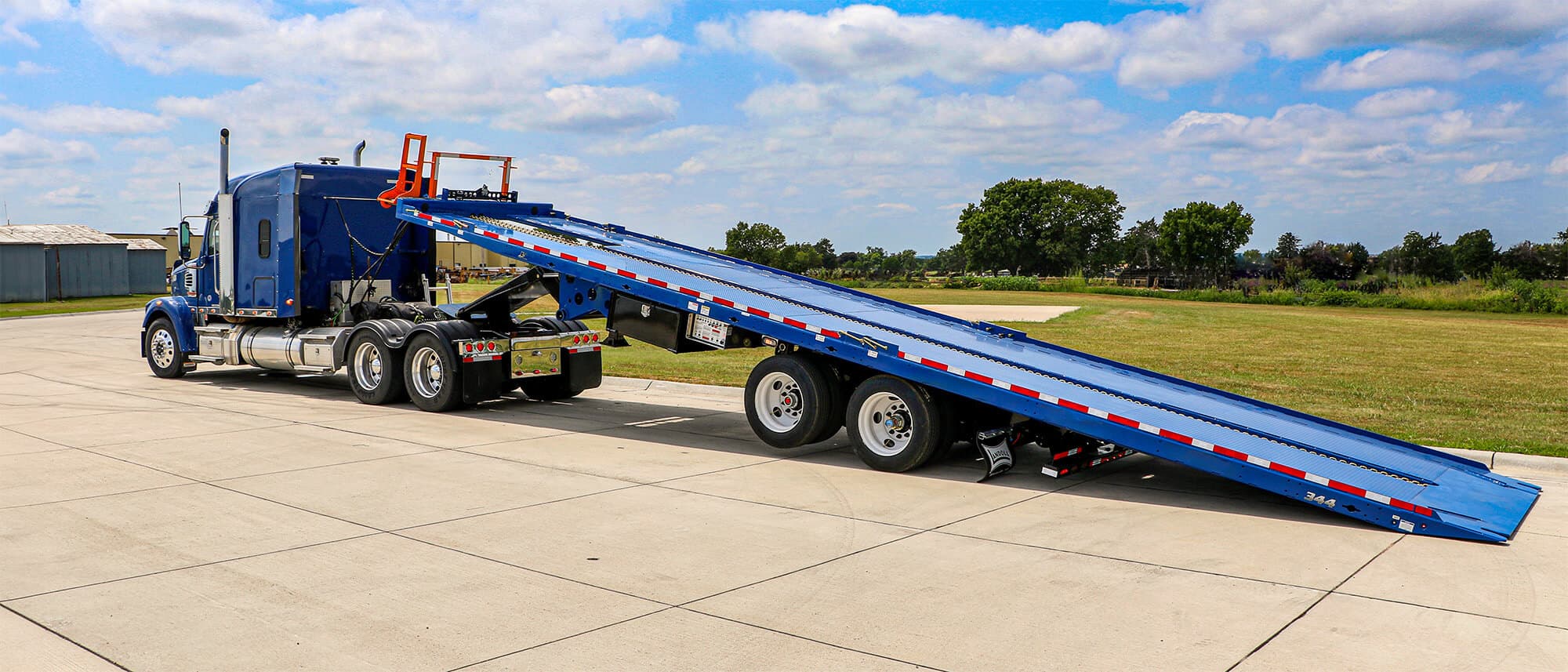

On a traveling axle trailer the axle assembly slides forward hydraulically until the rear of the deck touches the ground, turning the whole deck into a ramp. Equipment loads from the rear without a detachable neck or separate ramps, which makes it fast for one operator. Popular with rental yards and contractors moving mid-size machines and containers, with capacities typically from 25 to 55 tons.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
