Landoll Trailers
345 Traveling Axle Trailer
Features
- Capacity
- 25 ton
- Axles
- 2
- Deck height
- 38 in
Overview
From Landoll Trailers

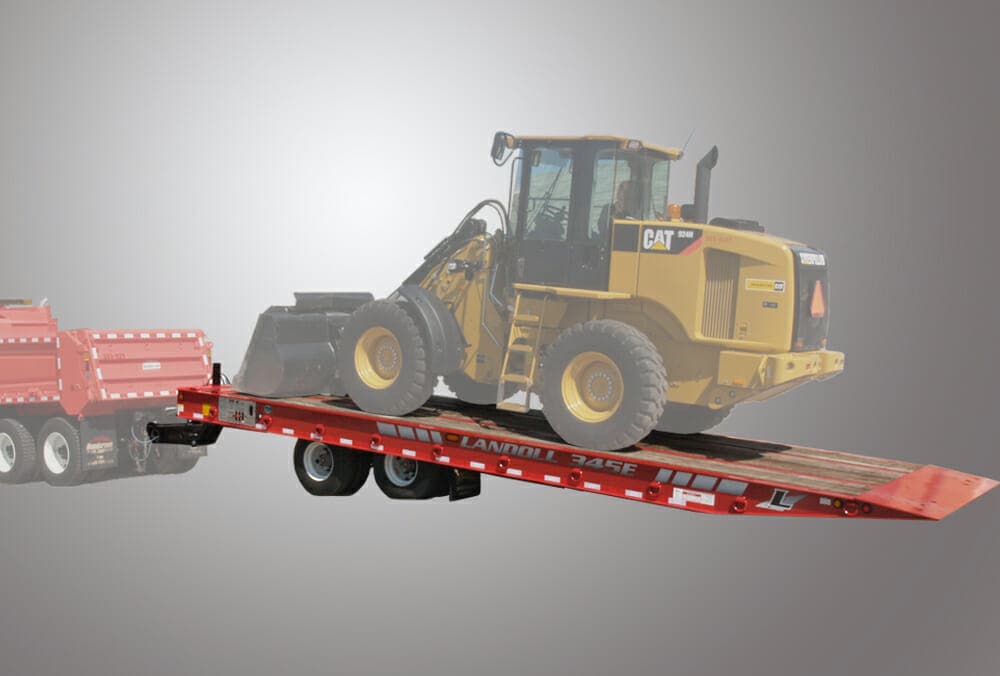

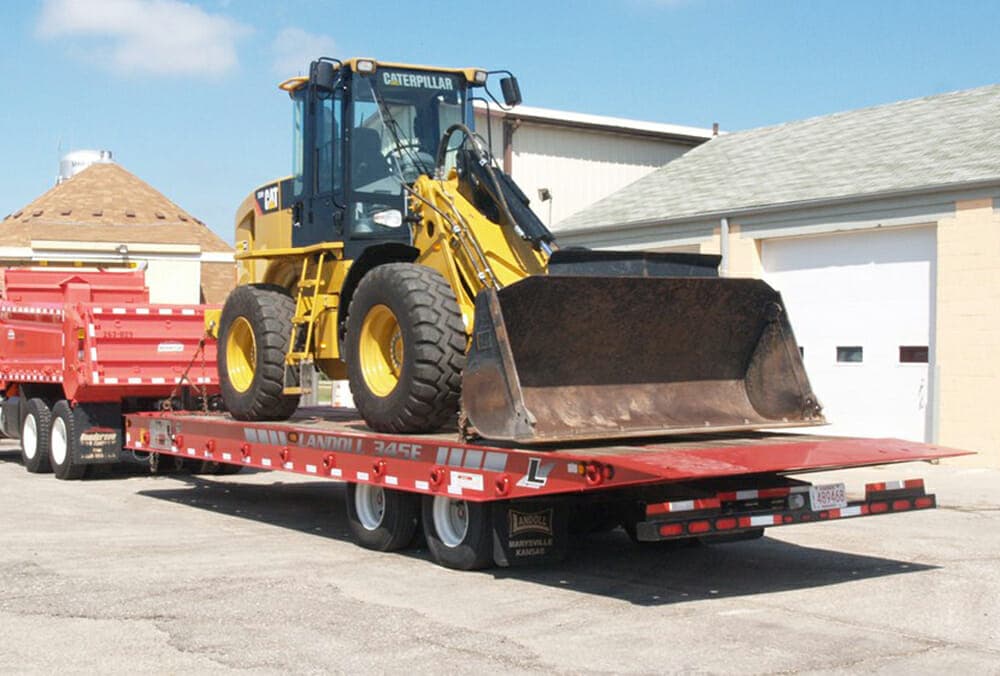

The 345 is a tandem-axle, pintle-hook, traveling-axle, four-beam trailer for hauling and ground loading pavers, graders, loaders, and other related equipment. The 345 is designed to be pulled by a tandem-axle dump truck or other heavy-duty truck with pintle hookup. The GVWR of the trailer is 63,500 lbs. distributed and 40,000 lbs. concentrated within 10 feet at highway speeds. The 345 is commonly used by state DOT departments and other municipalities. It’s flat approach and deck allow the operator to easily and safely load track and crawler equipment without the aid of ramps or beavertail. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. (Standard Colors Only) * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. Disclaimer: Landoll has a corporate policy of continuous product improvement and development, therefore, specifications are subject to change without any advance notice. Landoll is not responsible for differences between the specifications or illustrations contained on literature, data sheets, website and actual equipment. The information on any form of this website is intended only for the sole use of Landoll. We do not share or sell any of this information to third parties. This drawing and all information therein is property of Landoll and is confidential. It must not be made public or copied. This drawing is loaned subject to return upon demand and shall not be used directly or indirectly in anyway detrimental to our interest. Drawing illustrates standard equipment; optional equipment may change standard measurements. 800-428-5655 moc.llodnal@selasreliart
Specifications
Capacity
- Capacity*
- 25 Ton (50,000 lbs.)
- Estimated Base Weight
- 13,500 lbs +/- 3%
Dimensions
- Deck Rating
- 40,000 lbs in 10′
- Deck Width
- 102″
- Loaded Deck Height
- 38″
- Loaded Ground Clearance
- 20″
- Decking
- 1-3/8″ Apitong Hardwood
- Deck Type
- 1/8″ Steel Tread Plate
Frame
- Main Frame
- Fabricated 80,000 PSI Yield Perimeter Beams – Fabricated Inner Beams 80,000 PSI Web and Top Flange, 100,000 PSI Bottom Flange
- Wet Kit for Tractor (Includes 30 Gallon Steel Tank)
- Shipped loose with trailer or factory installed
General
- Crossmembers
- 3″ and 4″ Jr. I-Beams Alternating on 8″ Centers
- Tool Box
- Curbside and Streetside Top Opening with Lockable Load-Bearing Door (14″H x 24″W x 24″D)
- Tie Downs
- Double Key Hole Chain Slots and Stake Pockets on 24″ Centers
- Accessories
- Approach Plate with (6) Key Hole Tie Downs
- Parking Stands
- Pin Drop
- Undercarriage
- (1) 4″ x 126″
- Grease
- Centralized Grease System
- Rims
- 17.5 x 6.75 Tubeless
- Oil Seal Hubs
- Internal Mated Assembly
- Powder Coat Color
- White, Black, Yellow, Blue, Red, Green, Metallic Gray, Sapphire Blue
- Decals
- Hi-Visibility Reflective Package
- D-Rings
- Flush Mounted Recessed Mounted Bolt-On at Winch
- Model
- Capacity*
- Certifications
- Cage Code — 65459; Small Business NAICS Codes — 336211, 336413, 333111, 333924, 336212 Copyright © 2026 Landoll Company, LLC. All Rights Reserved.
Gooseneck
- Hitch

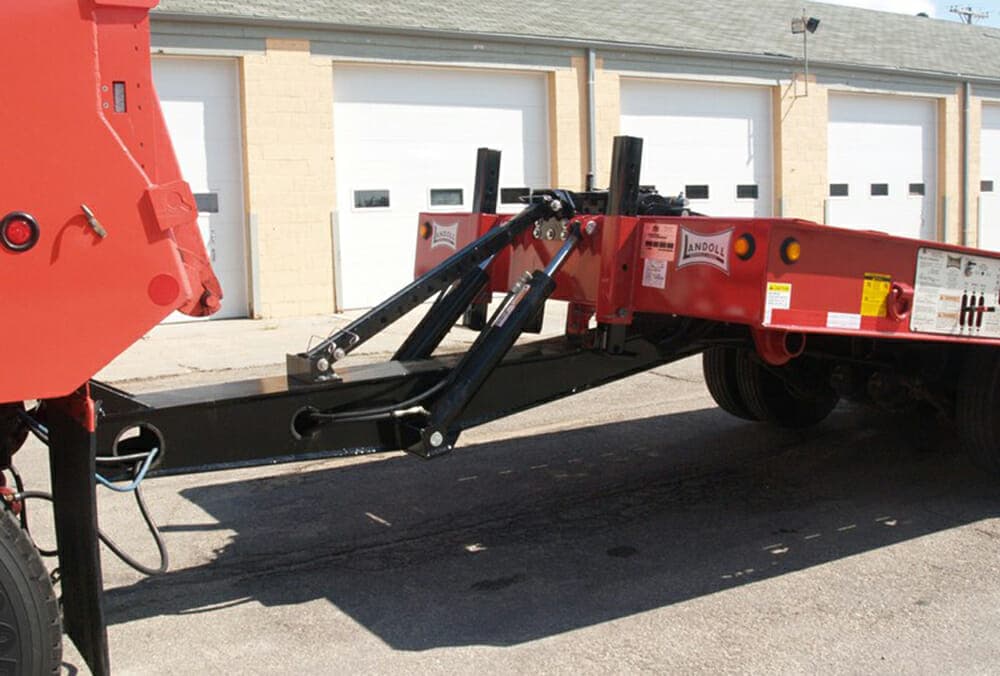

- 4′ Pintle Hook 15,000 lb. Vertical Load Eye with Adjustment of 23″-32″ from Ground Level
- 345-31 (4′ Hitch)
- 25 Ton
- 345-31 (5′ Hitch)
- 25 Ton
- 345-31 (7′ Hitch)
- 25 Ton
Loading
- Load Angle
- 9°
Running Gear
- Suspension
- SAF Air Ride RLU228, 22,500 lbs. Capacity
- Axles
- (2) 25,000 lbs. Axles, Dual Tires, Oil Bath Bearings, Automatic Slack Adjusters
- Brakes
- 12.25 x 7.5 Full Air / Spring Brakes ABS, 4S2M
- Tires
- 235/75R 17.5 LRJ Continental Radial Tires
- Wheels
- Steel Hub Pilot
Hydraulics
- Hydraulic Hook Up
- Quick Couplers 2,500 PSI – 20 GPM at Controls, 50 GPM Max
- Tilt Cylinders
- (2) 4″ Bore
- Hydraulic Winch
- No Winch Standard
- Hydraulic Valve Body
- Rexroth
- Winch

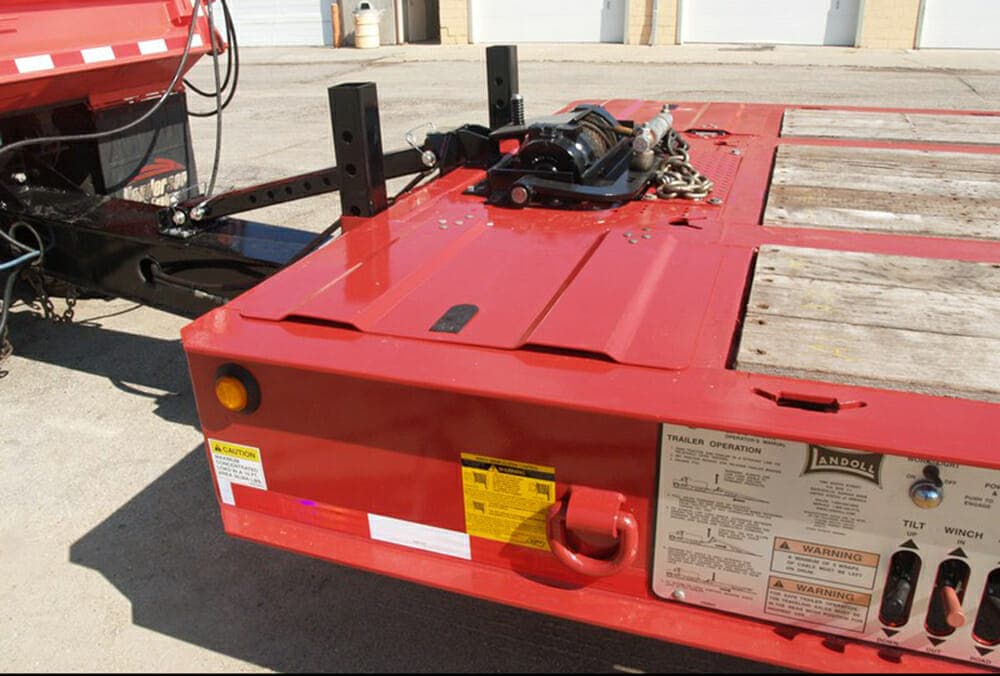

- 12k or 20k Winch – Front Mounted (Braden)
- Dual Hydraulic Controls
- Street and Curb Side
- Hydraulic Dock Leveler
- 62,000 lb.
- Polished Aluminum Hydraulic Tank
- 19″W x 24D” (Side Mount)
- Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package
- No Curb Side Tool Box
Electrical
- Air / Electrical
- 7-Way Receptacle
- Lights
- Industry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty)
- Wiring Harness
- Industry Best Grote Xtreme Harnessing (7-year warranty)
Finish
- Finish
- Steel Grit Shot Blast to Bright Metal, Zinc Rich Primer
- Paint Over Galvanizing
- Sides Top Surface (Standard Colors Only)
Controls
- Wireless Remote Control
- Six Function
About traveling axle trailers

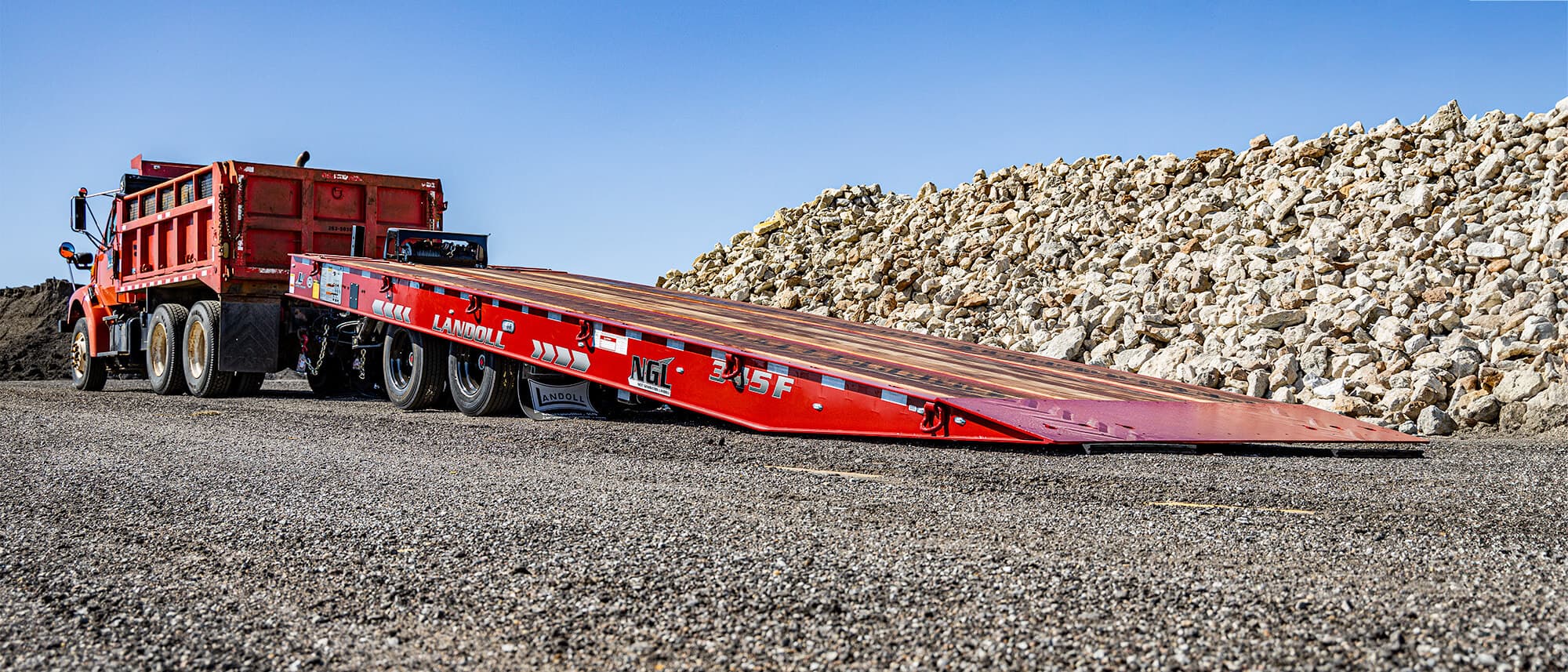

On a traveling axle trailer the axle assembly slides forward hydraulically until the rear of the deck touches the ground, turning the whole deck into a ramp. Equipment loads from the rear without a detachable neck or separate ramps, which makes it fast for one operator. Popular with rental yards and contractors moving mid-size machines and containers, with capacities typically from 25 to 55 tons.
