455 Traveling Axle Trailer

Overview

From Landoll Trailers

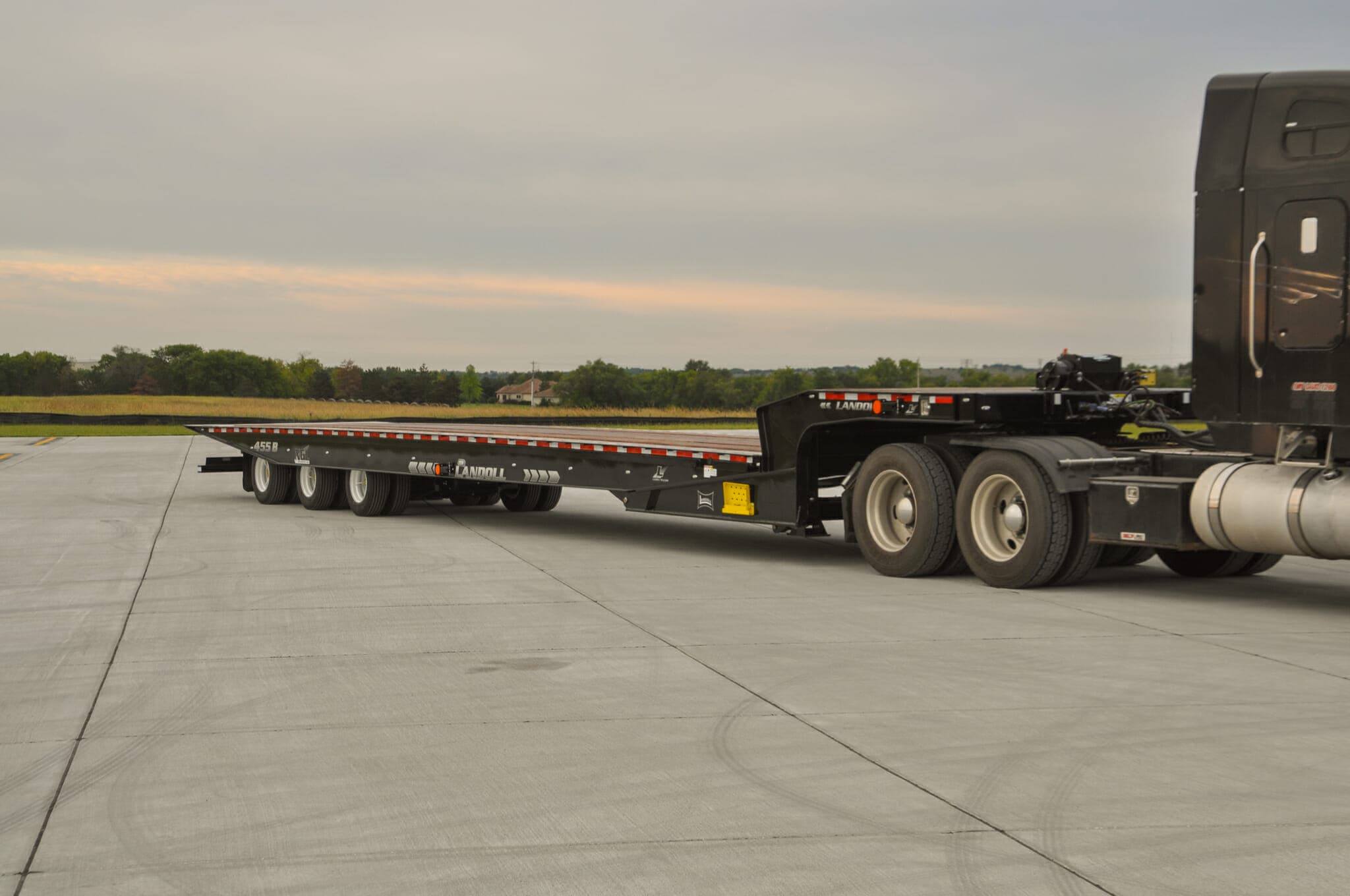

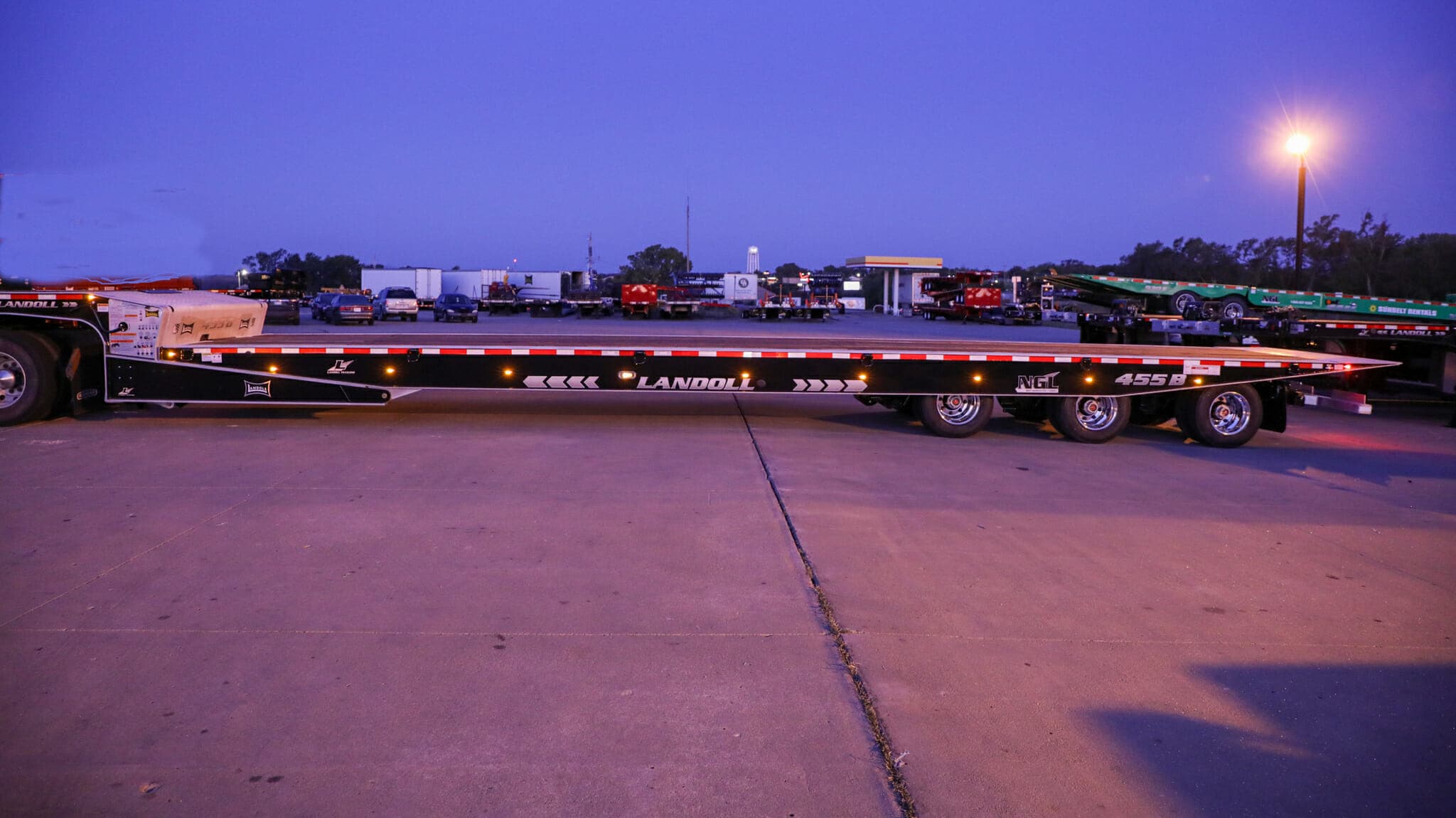

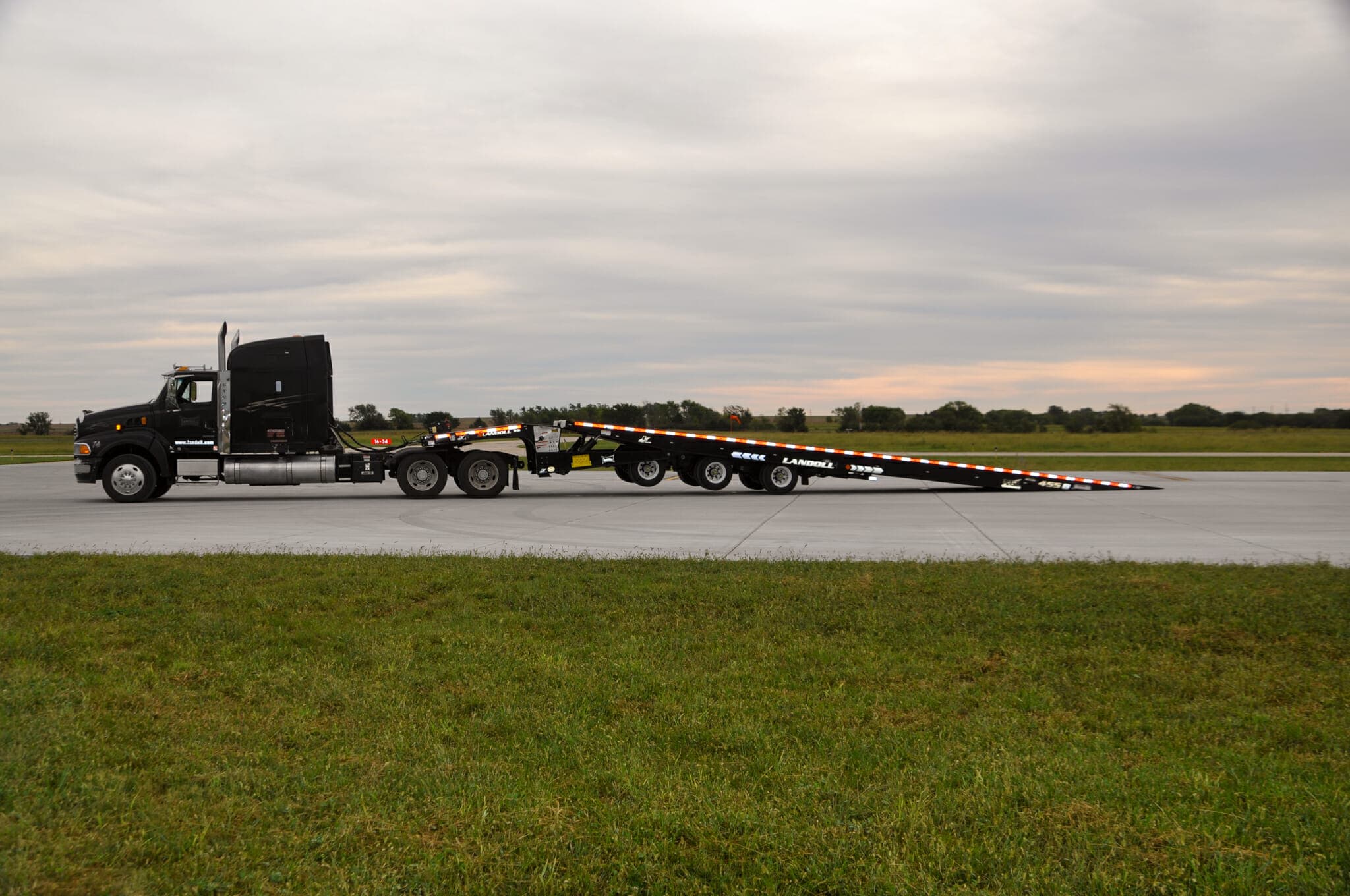

Landoll Engineering continues to optimize the 400 Series trailer to be the ultimate solution. Simplified design features give essential confidence for an owner and operators. The 455 Traveling Axle Trailer can handle heavy loads with it’s triple axles and 55-ton capacity. Available in lengths of 48’, 50’, 53’, 57′ and California legal 50’. To maximize the load capacity, the 455 includes 60” axle spread standard. Increased frame capacity is one of the outstanding features of the 455 along with wider main beams, wider undercarriage, wider tilt cylinder mounts and wider outer beam pivot points. All 400 series trailers feature the super low clearance slope transition allowing man lifts, forklifts, and other difficult low clearance equipment to easily load the upper deck. The four beam frame design is the backbone of a super versatile, solid piece of equipment. Wider main beams with a wider undercarriage, outboard tilt cylinder mounts, and outer beam pivot points add superior stability while loading heavy loads. Landoll is the only trailer manufacturer to offer powder coat paint on an entire trailer frame. The very durable finish provides excellent chemical and salt resistance while giving Landoll trailers a high quality, attractive appearance. A zinc-rich powder primer is applied prior to painting the entire frame with one of eight standard powder coat colors. The railroad track option is ideal for safely loading and transporting today’s rail maintenance equipment. The Landoll approach plate sits down onto the rail to create a solid base and smooth transition from rail to trailer without ramps or heavy drop-in-rails, allowing operators to load these machines within minutes. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. 10′ Wide Deck (Canadian RTAC compliant) Front Extension Mounted Under Deck Mounted w/ Auto Diverter Low Profile Strap Ratchet with J-Hook Low Profile Strap Ratchet with Stake Pocket 3-Bar Strap Ratchet with J-Hook 3-Bar Strap Ratchet with Stake Pocket Low Profile Strap Ratchet with J-Hook Low Profile Strap Ratchet with Stake Pocket 3-Bar Strap Ratchet with J-Hook 3-Bar Strap Ratchet with Stake Pocket (Standard Colors Only) Side Opening Toolboxes Curb Side (Painted Safety Yellow) Container Skid Plates Flush with Wood Deck Deck Straps beside Inner Beam (1-1/4″ x 9″) 2 Upper Deck, 2 Front Lower Deck, and 2 Rear Lower Deck Upper Deck Marker Lights (NA w/Chain/Rub Rail) Lower Deck Turn/Flashing Lights Lower Deck Marker Lights 255/70R 22.5 Double Coin 255/70R 22.5 Continental 255/70R 22.5 Michelin 5 Polished Aluminum Wheel (8 bolt) (Price for 2 axles outside only) 5 Polished Aluminum Wheel (10 bolt) (Price for 2 axles outside only) * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. Disclaimer: Landoll has a corporate policy of continuous product improvement and development, therefore, specifications are subject to change without any advance notice. Landoll is not responsible for differences between the specifications or illustrations contained on literature, data sheets, website and actual equipment. The information on any form of this website is intended only for the sole use of Landoll. We do not share or sell any of this information to third parties. This drawing and all information therein is property of Landoll and is confidential. It must not be made public or copied. This drawing is loaned subject to return upon demand and shall not be used directly or indirectly in anyway detrimental to our interest. Drawing illustrates standard equipment; optional equipment may change standard measurements. 800-428-5655 moc.llodnal@selasreliart

Specifications
