Rogers Brothers
TAG25XXL-AL 25-Ton Tag-Along
- Capacity
- 25 ton
- Axles
- 3
- Deck length
- 24 ft
- Deck height
- 34 in
Overview
From Rogers Brothers

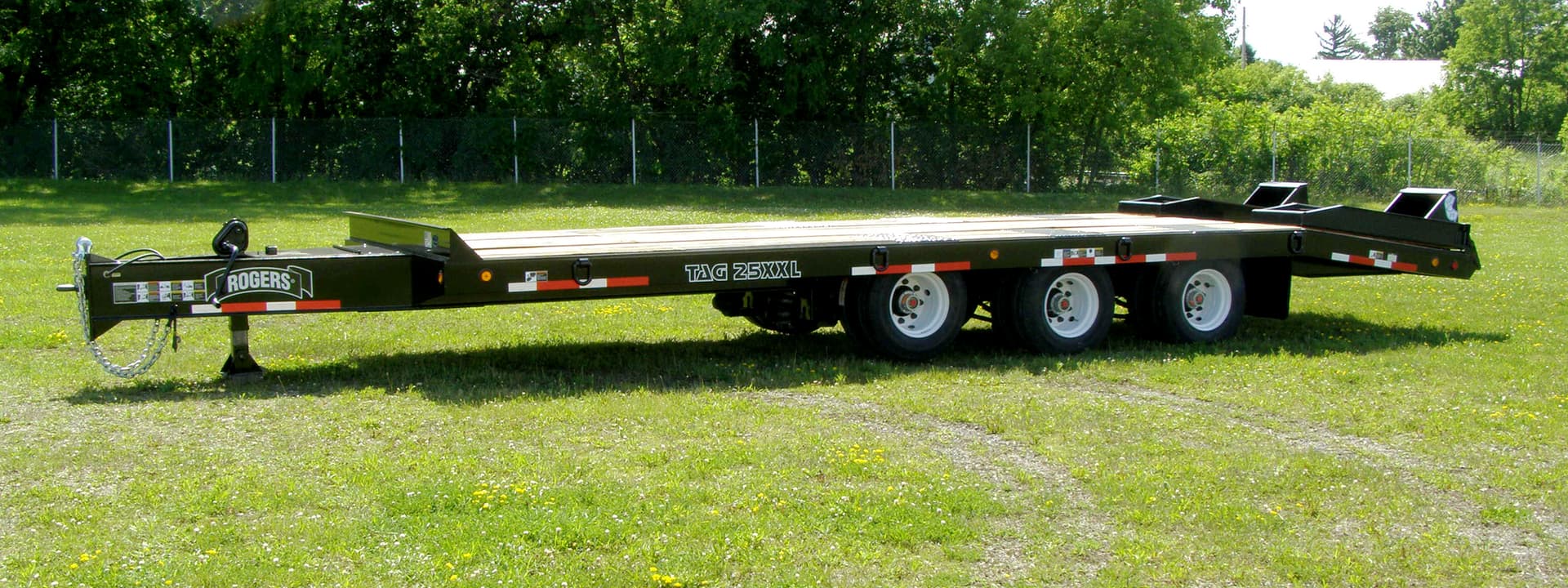

The ROGERS TAG25XXL-AL trailer features a longer 24'-0" x 8'-6" platform deck for increased load space and versatility. The front axle of the trailer is mounted to an air suspension that is lift-able and can have its axle-load set by the operator. Exclusive 80" long drawbar provides better load distribution to your truck for a smoother, safer ride. "E-Z Flip" ramps are 22" wide by 72" long and are laterally adjustable for maximum versatility. Standard features: Front axle air suspension with axle air lift; Heavy-duty spring suspension on rear two axles; 215/75R17.5(H) low profile tires on 17.5 x 6.75 hub piloted steel disc wheels; Oak-covered "E-Z Flip" ramps, 72" long x 22" wide, laterally adjustable; High capacity two-speed landing gear; Six-position pintle eye with 66,000 lb. capacity; Fourteen (14) standard lashing D's · seven (7) per side; Oak-covered 6'-0" long beavertail with 8 degree load angle; US DOT 12-volt LED lighting with sealed wiring system and 7-wire socket.
Specifications
Capacity
- Capacity
- 25.0-ton
- Concentrated Load
- 50,000-pounds
- Concentrated Load Length
- 15'-0"
Dimensions
- Deck Length
- 24'-0"
- Loaded Deck Height
- 34"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 3 axles
- Axle Type
- 22,500 lbs. capacity with oil-bathed bearings
- Suspension
- 44,800 lb. capacity tandem axle heavy-duty multi-leaf 4-spring + 22,000 lb. capacity single axle air suspension on front lift axle
- Tires
- 215/75R17.5(H) low-profile tubeless radial
- Wheels
- 17.5 x 6.75 8-hole steel disc
- Brakes
- 12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Tag-Along
- Trailer Use
- Rear Loading: Tag-Along
About tag-along trailers
A tag-along (tag) trailer couples to a truck with a pintle hitch rather than a fifth wheel, so it can be pulled by a dump truck, service truck or heavy pickup. Capacities range from about 10 to 25 tons — sized for skid steers, mini excavators, compactors and paving equipment. Tilt-deck, beavertail and ramp variants change how machines load. It is the workhorse for contractors who do not run a dedicated tractor.
