Rogers Brothers
TAG25XXL-AL Air Ramps 25-Ton Tag-Along
- Capacity
- 25 ton
- Axles
- 3
- Deck length
- 24 ft
- Deck height
- 34 in
Overview
From Rogers Brothers

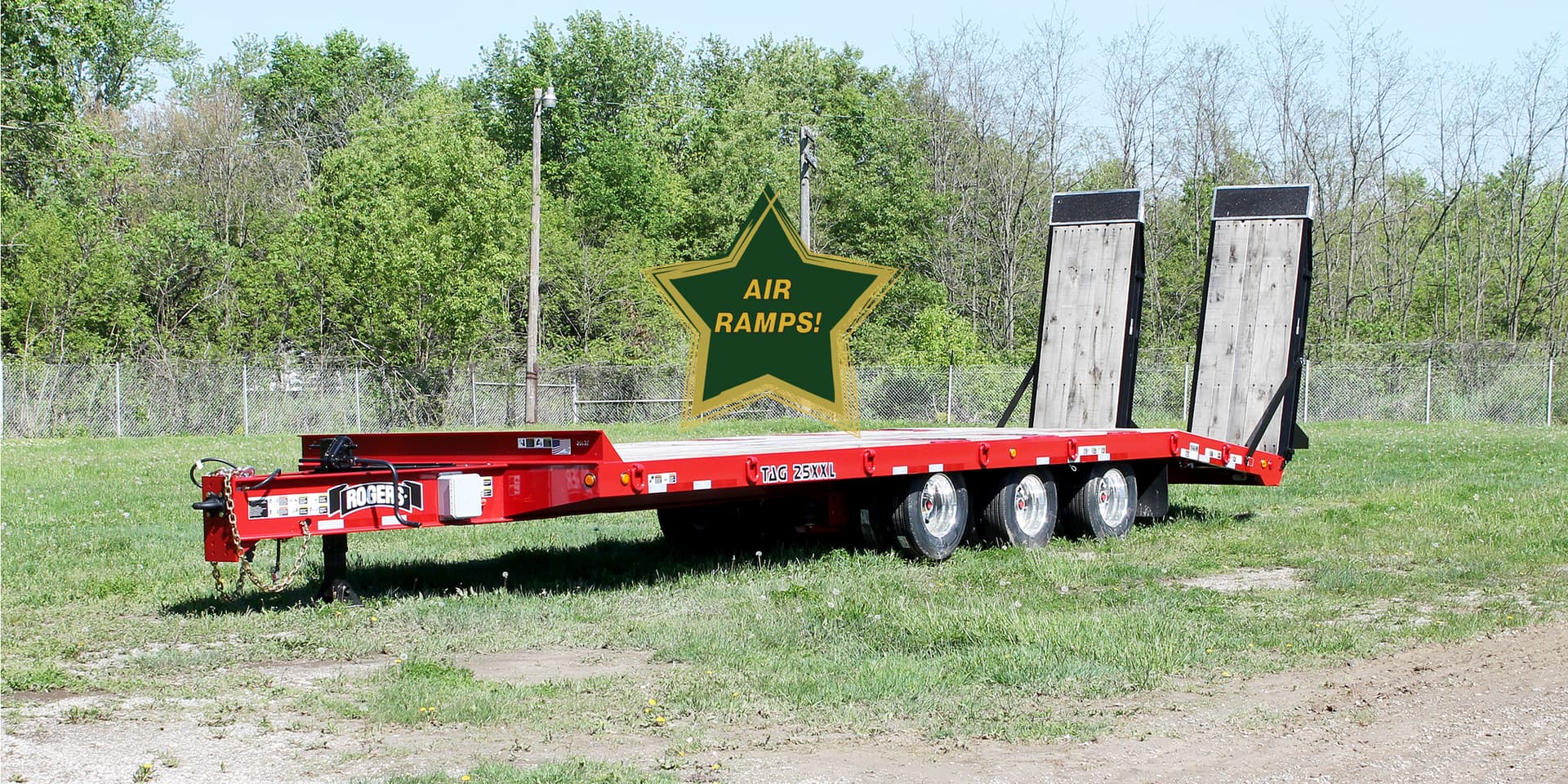

The ROGERS TAG25XXL-AL trailer features a longer 24'-0" x 8'-6" platform deck for increased load space and versatility. Brand new design Air-powered ramps take the heavy lifting out of loading and unloading the trailer. The front axle of the trailer is mounted to an air suspension that is liftable and can have its axle-load set by the operator. Exclusive 80" long drawbar provides better load distribution to your truck for a smoother, safer ride. Optional aluminum outer disc wheels shown. Standard features: Front axle air suspension with axle air lift; Heavy-duty spring suspension on rear two axles; 215/75R17.5(H) low profile tires on 17.5 x 6.75 hub piloted steel disc wheels; Air powered loading ramps, 84" long x 38" wide, oak covered; High capacity two-speed landing gear; Six-position pintle eye with 66,000 lb. capacity; Fourteen (14) standard lashing D's · seven (7) per side; Oak-covered 6'-0" long beavertail with 8 degree load angle; US DOT 12-volt LED lighting with sealed wiring system and 7-wire socket.
Specifications
Capacity
- Capacity
- 25.0-ton
- Concentrated Load
- 50,000-pounds
- Concentrated Load Length
- 15'-0"
Dimensions
- Deck Length
- 24'-0"
- Loaded Deck Height
- 34"
- Deck Width
- 8'-6"
- Deck Style
- Platform
Running Gear
- Axles
- 3 axles
- Axle Type
- 22,500 lbs. capacity with oil-bathed bearings
- Suspension
- 44,800 lb. capacity tandem axle heavy-duty multi-leaf 4-spring + 22,000 lb. capacity single axle air suspension on front lift axle
- Tires
- 215/75R17.5(H) low-profile tubeless radial
- Wheels
- 17.5 x 6.75 8-hole steel disc
- Brakes
- 12 1/4" x 7 1/2" shoes, 4S/2M ABS and spring parking brakes
General
- Trailer Type
- Tag-Along
- Trailer Use
- Rear Loading: Tag-Along
About tag-along trailers
A tag-along (tag) trailer couples to a truck with a pintle hitch rather than a fifth wheel, so it can be pulled by a dump truck, service truck or heavy pickup. Capacities range from about 10 to 25 tons — sized for skid steers, mini excavators, compactors and paving equipment. Tilt-deck, beavertail and ramp variants change how machines load. It is the workhorse for contractors who do not run a dedicated tractor.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
