Felling Trailers
TSA Tilt Slide Axle
Tilt Slide Axle Trailer Series
- Capacity
- 35 ton
- Deck height
- 41 in
- GVWR
- 89,000 lb
Overview
From Felling Trailers
Felling Trailers Tilt Slide Axle Trailer (TSA) is perfect for recovery, towing an array of equipment, and moving ISO containers. Felling’s Slide Axle Tilt trailers are equipped standard with the following key features: View our trailer model details in the product sheets below. If you’re ready for a quote fill out the request a quote form. Contact Your Felling Trailers Regional Sales Manager for a Quote "*" indicates required fields © 2026 Felling Trailers, Inc. 1/2026 Δ document.getElementById( "ak_js_1" ).setAttribute( "value", ( new Date() ).getTime() );
Specifications
Capacity
- GVWR
- 89,000 lbs – 122,800 lbs.
- Load Capacity
- 70,000 lbs. – 100,000 lbs.
Dimensions
- Deck Height
- L- 41″ loaded, 43″ unloadedH – 47″ loaded, 50″ unloaded
Running Gear
- Tilt Slide Axle Trailer Series
- Felling Trailers Tilt Slide Axle Trailer (TSA) is perfect for recovery, towing an array of equipment, and moving ISO containers. Felling’s Slide Axle Tilt trailers are equipped standard with the following key features:
General
- key features
- (6) 5″ Rollers, (2) V-rollers and Pad Hydraulic Sliding Axle System

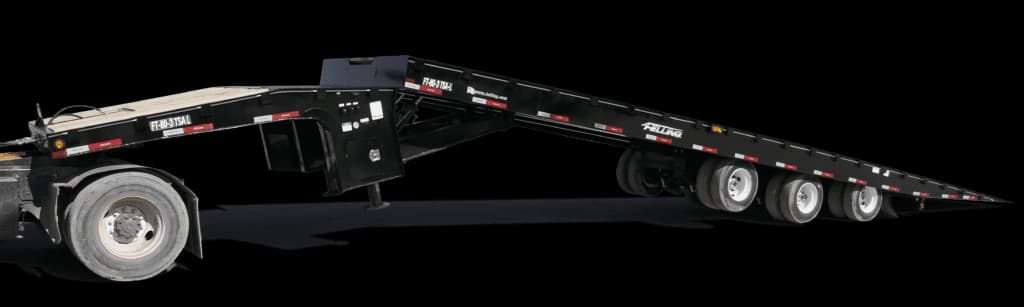

- FT-80-3 TSA-L
- (PDF)
- FT-100-3 TSA-L
- (PDF)

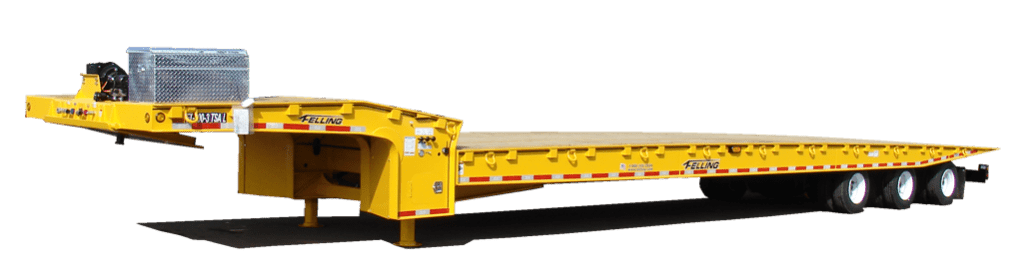

- FT-100-3 TSA-H
- (PDF)
- Manufacturer
- Felling Trailers
About traveling axle trailers
On a traveling axle trailer the axle assembly slides forward hydraulically until the rear of the deck touches the ground, turning the whole deck into a ramp. Equipment loads from the rear without a detachable neck or separate ramps, which makes it fast for one operator. Popular with rental yards and contractors moving mid-size machines and containers, with capacities typically from 25 to 55 tons.
