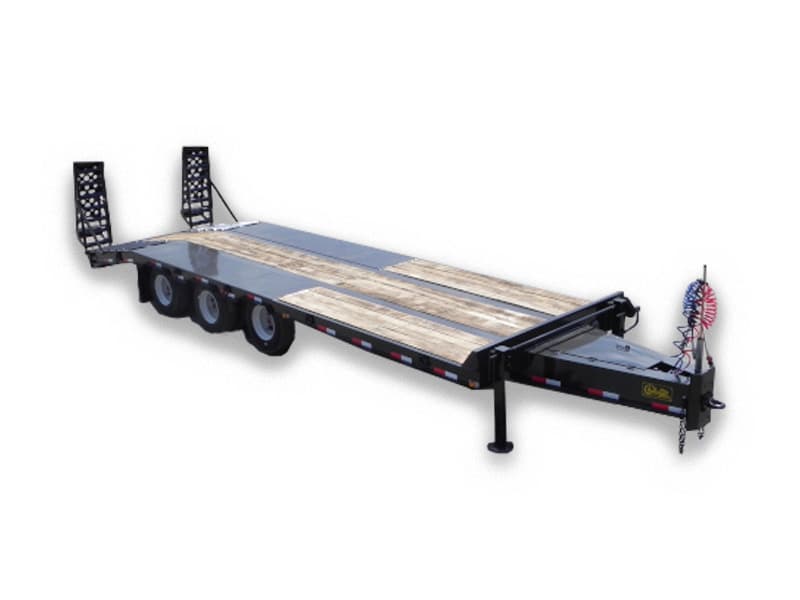

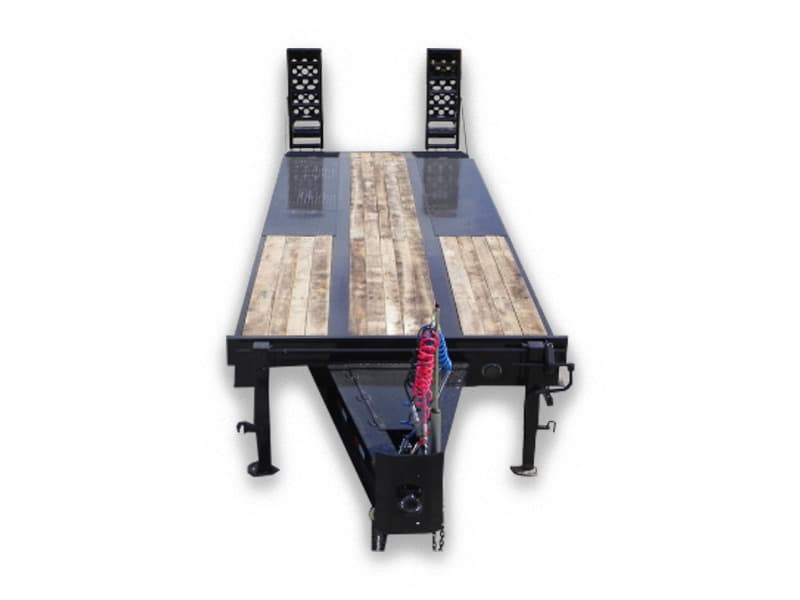

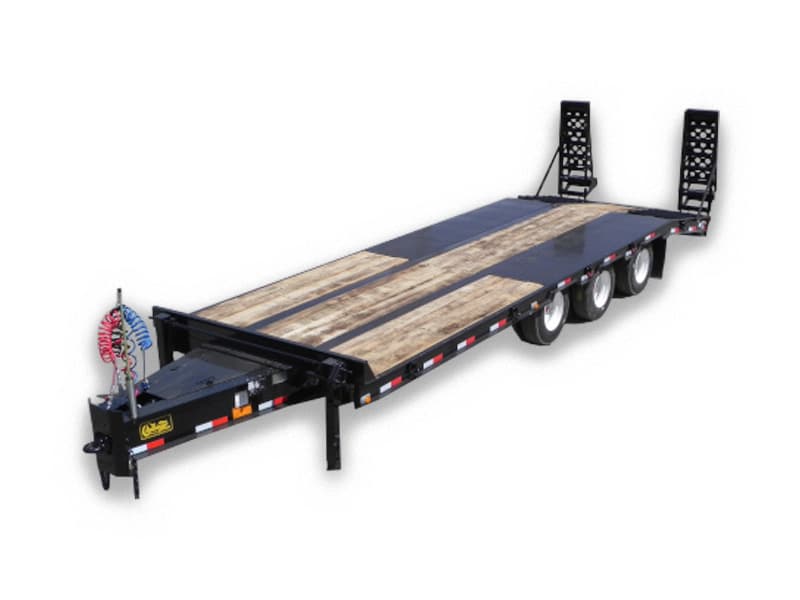

Witzco Challenger
TT-30 • 30 Ton Tag Trailer Series
- Capacity
- 30 ton
- Axles
- 3
- Deck length
- 22.5 ft
- Deck height
- 34 in
Overview
From Witzco Challenger
TT-30 Tag Standard Features – 60,000# load capacity, 8’ 6″ wide, 3″ lunette eye 3 position hitch, 8’ 6″ wide, 22 ‘ 6″ level load deck, 60? beaver tail, 33’ overall length. Deck height 34″, 2″ oak decking, load deck & beaver tail, steel plate above tires, 6 “D” rings, 3 per side, 24″ x 60″ spring assisted manual ramps. Hutch H-9700 spring suspension, 3 each 22,500# axles, 12.25″ x 7.5″ air brakes w/ABS system, 235/75 R 17.5 tires, 8 stud hubs, open storage in draw bar, twin screw type landing legs. Modular wire harness, rubber mounted sealed lights, conspicuity marking tape, as per DOT requirements. Available options: · Electric over hydraulic ramps · Additional “D” rings · Lockable storage · Self cleaning beaver tail & ramps · Other suspensions ABS Brakes on all Domestic sales
Specifications
Capacity
- Load Capacity
- 60,000 lbs
Running Gear
- Axles
- 3
- Axle Capacity
- 22,500 lbs
- Suspension
- Hutch H-9700 spring suspension
- Brakes
- 12.25" x 7.5" air brakes w/ABS system
- Tires
- 235/75 R 17.5
Dimensions
- Overall Length
- 33'
- Deck Length
- 22' 6"
- Deck Height
- 34"
- Width
- 8' 6"
Construction
- Decking
- 2" oak decking
Hitch
- Hitch
- 3" lunette eye 3 position hitch
Ramps
- Ramps
- 24" x 60" spring assisted manual ramps
About tag-along trailers
A tag-along (tag) trailer couples to a truck with a pintle hitch rather than a fifth wheel, so it can be pulled by a dump truck, service truck or heavy pickup. Capacities range from about 10 to 25 tons — sized for skid steers, mini excavators, compactors and paving equipment. Tilt-deck, beavertail and ramp variants change how machines load. It is the workhorse for contractors who do not run a dedicated tractor.
